MASTERBOX K501L
YOUR ANGLE OF ATTACK
Angled Ventilation
Illuminated Fan & Power Button
Transparent Side Panel
Clean Routing Space
Versatile Component Support

ROOM FOR UPGRADES
Gaming is in the core of the MasterBox K501L. Donning an illuminated fan against the angled front panel ventilation speaks to its competitive character. Support for gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L while still leaving room for future upgrades.

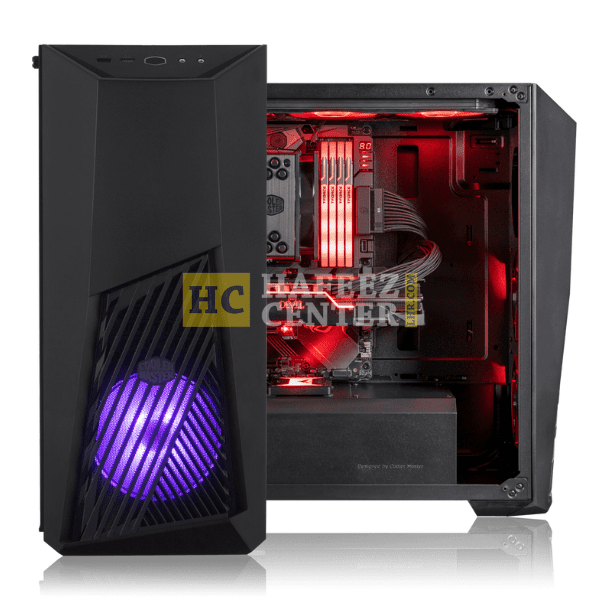

ANGLED VENTILATION
The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.

ILLUMINATED FAN & POWER BUTTON
Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.

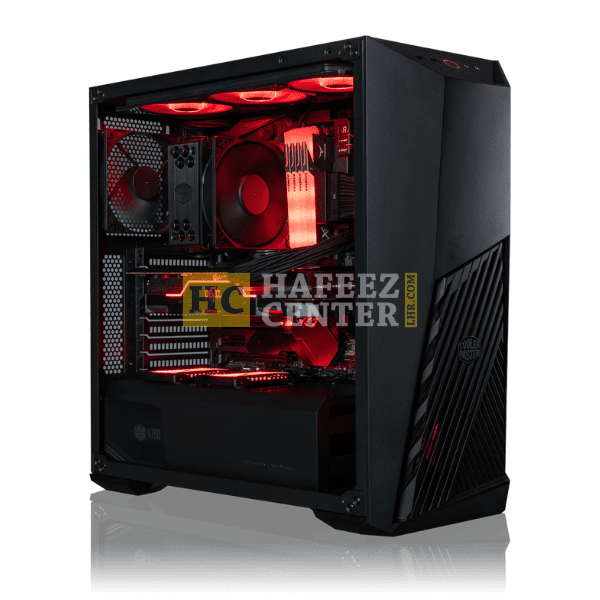

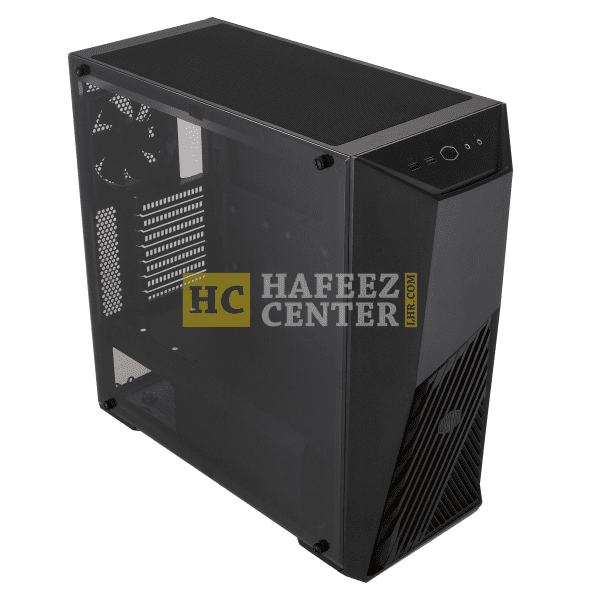

TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel.

CLEAN ROUTING SPACE
There is 19~27mm width of space behind the motherboard tray to efficiently manage and organize cables.

COOLING SUPPORT
Fans
Radiators

Top:
120 / 140mm x 2 Fans
120 / 240 Radiator

Front:
120 x 3 / 140mm x 2 Fans
120 / 140 / 240 / 280 / 360 Radiator

Rear:
120 x 1 Fan
120 x 1 Radiator

MOTHERBOARD SUPPORT
Mini-ITX, Micro-ATX, ATX

FRONT
REAR
STORAGE SUPPORT
3.5” HDD x 2 (Max. 3)

2.5” SSD x 2 (Max. 3)

*HDDs mount only on one side at a time

COMPONENT CLEARANCES
CPU Cooler:
165mm
Graphics Cards:
410mm
Power Supplies:
200mm
MODEL NUMBER
MCB-K501L-KANN-S00
SERIES
MasterBox Series
SIZE
Mid Tower
AVAILABLE COLOR(S)
Black
MATERIALS
Plastic, Acrylic
DIMENSIONS (LXWXH)
499.5mm x 217mm x 468.5mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions)
MOTHERBOARD SUPPORT
ATX, Micro ATX, Mini ITX
EXPANSION SLOTS
7
5.25″ DRIVE BAYS
0
3.5″ DRIVE BAYS
2
2.5″ DRIVE BAYS
2
I/O PANEL
1x USB 2.0, 1x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
PRE-INSTALLED FANS – FRONT
1x 120mm Red LED
PRE-INSTALLED FANS – REAR
1x 120mm (Black)
FAN SUPPORT – FRONT
2x 140mm, 3x 120mm
FAN SUPPORT – TOP
2x 120/140mm
FAN SUPPORT – REAR
1x 120mm
RADIATOR SUPPORT – FRONT
120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT – TOP
120mm, 240mm
RADIATOR SUPPORT – REAR
120mm
CLEARANCE – CPU COOLER
165mm
CLEARANCE – PSU
390mm (without radiator and HDD installed), 200mm (with radiator and HDD installed)
CLEARANCE – GFX
410mm (without radiator installed), 360mm (with radiator installed)
POWER SUPPLY SUPPORT
ATX PS2
DUST FILTERS
Top, Front, Bottom
EAN CODE
4719512090749
UPC CODE
884102063169
CABLE ROUTING
19~27mm
