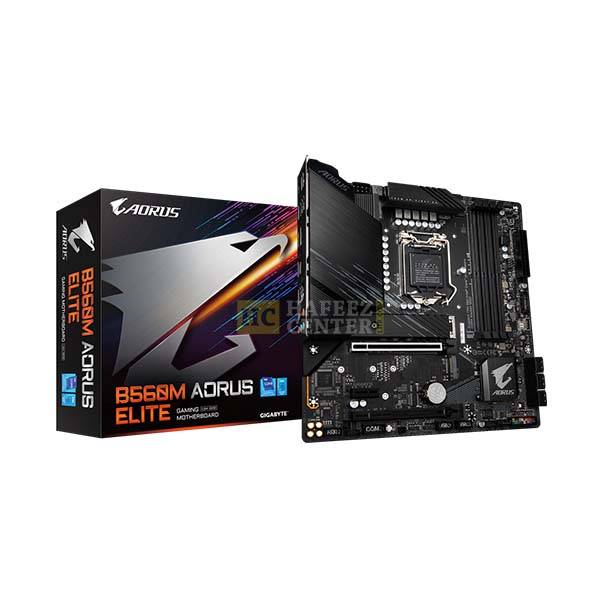

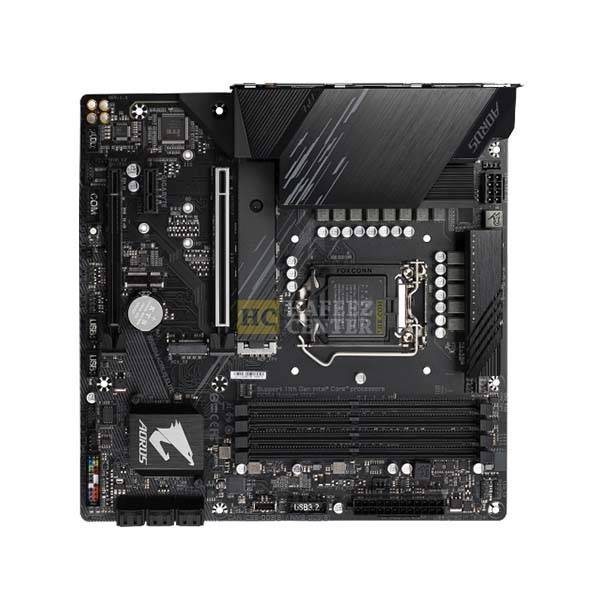

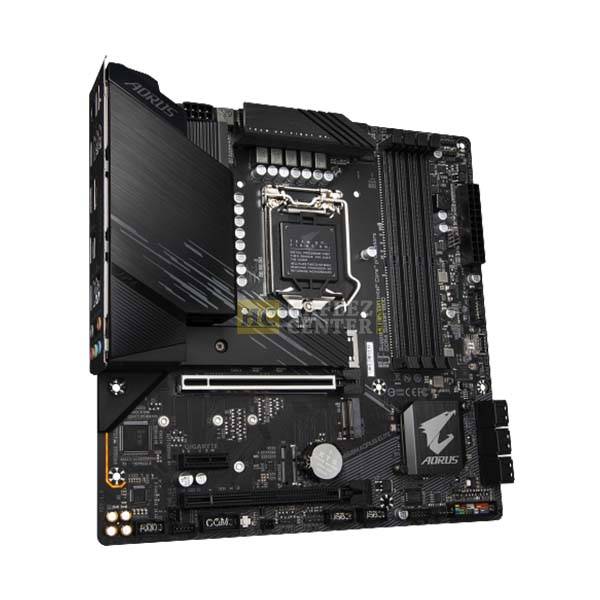

Gigabyte B560M Aorus Elite Intel Motherboard | Rev 1.0

Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFET:
– Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Benefits of Lower RDS(on) MOSFETs:
– Optimized gate charge to minimize switching losses.
– Lower temperature, smaller size, better thermal characteristics.

High Quality Onboard Audio Design:
– Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Gigabyte bios & app center:
– Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.

Features:

– Supports 11th and 10th Gen Intel® Core™ Series Processors
– Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
– Direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs
– Shielded Memory Routing for Better Memory Overclocking
– Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
– Fast 2.5GbE LAN with Bandwidth Management
– Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
– Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting Devices
– Pre-installed IO Shield for Easy and Quick Installation
– RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
– Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
– Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

CPU:
LGA1200 package:
– 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
– 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
– Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
– L3 cache varies with CPU

Chipset:
– Intel® B560 Express Chipset

Memory:
– 11th Generation Intel® Core™ i9/i7/i5 processors:
– Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
– 10th Generation Intel® Core™ i9/i7 processors:
– Support for DDR4 2933/2666/2400/2133 MHz memory modules
– 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
– Support for DDR4 2666/2400/2133 MHz memory modules
– 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
– Dual channel … Read more
