How to Install CCTV Camera

In today’s world, ensuring the security of your home or business has become increasingly important. CCTV (Closed-Circuit Television) cameras play an important role in providing effective surveillance and peace of mind. However, the CCTV Camera installation process might seem complicated for those who don’t know the technical factors. But fear not!

In this comprehensive guide, we will take you through the step-by-step process of installing a CCTV camera, allowing you to enhance your security standards and protect what matters most.

CCTV Camera Security

Planning and Preparation

Before investigating the installation process of CCTV cameras, it’s essential to plan and prepare effectively. Taking the time to consider some important factors will help ensure a smooth installation process and optimal camera placement. Here are a few key steps to follow:

1. Determine Your Surveillance Goals

Define the areas you want to monitor and the specific objectives you want to achieve with your CCTV camera system

2. Conduct a Site Survey

Estimate the areas you intend to cover, considering factors such as lighting conditions, potential blocks, and desirable camera angles.

3. Select the Right CCTV Camera

Choose a camera that aligns with your surveillance goals, whether it’s a dome camera for discreet monitoring or a bullet camera for long-range visibility.

Gathering the Necessary Equipment

To install a CCTV camera successfully, you’ll need to gather the necessary equipment. Here’s a list of common items required for a typical installation:

1. CCTV Cameras

There are many types of CCTV cameras including bullet cameras, dome cameras, and PTZ cameras are some of the most common. Select suitable cameras based on your surveillance goals and the site survey you conducted.

2. Cables and Connectors

Depending on your camera type, you’ll need power cables, video cables, and connectors to establish connections.

3. Power Supply

Determine the power supply requirements for your cameras and ensure you have sufficient power sources available.

4. DVR/NVR System

If you’re planning to record and store the footage, you’ll need a Digital Video Recorder (DVR) or Network Video Recorder (NVR) system.

Installation Process

Now that you’ve completed the planning and gathered the necessary equipment, let’s check out the installation process itself. Follow these step-by-step instructions for a successful CCTV camera installation:

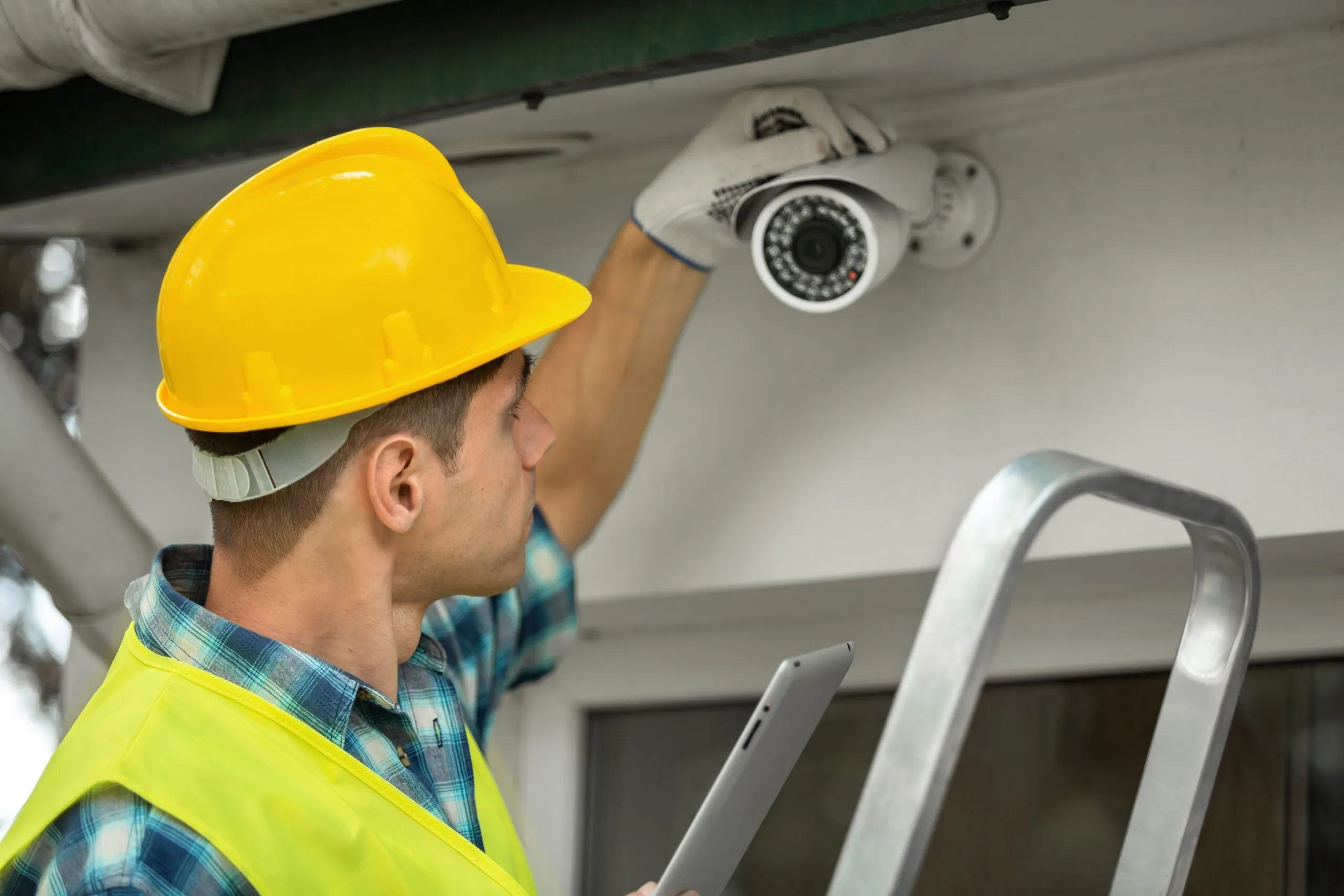

CCTV Installation Process-hafeezcenterlhr

1. Set up the Camera

  1. Identify the optimal mounting locations based on your site survey.
  2. Use a mounting bracket or base to secure the camera in place.
  3. Ensure the camera is level and positioned correctly for the desired field of view.

2. Setting the Power Connections

  1. Determine the power source for your camera.
  2. Connect the camera’s power cable to the power supply or power distribution box.
  3. Test the power connection to ensure the camera receives sufficient power.

3. Establishing Video Connections

  1. Connect the video cable from the camera to the DVR/NVR system.
  2. Securely attach the connectors to ensure a stable video transmission.

4. Adjusting Camera Settings

  1. Access the camera’s settings via the DVR/NVR system or a dedicated software interface.
  2. Configure the camera settings, including resolution, frame rate, and motion detection.
  3. resolution, frame rate, and motion detection.

5. Testing and Fine-Tuning

  1. Power on the camera and verify that the video feed is displayed on the DVR/NVR system.
  2. Adjust camera angles and positions as needed to optimize the area of view.
  3. Test camera functionality, including motion detection and night vision (if applicable).

6. Recording and Monitoring

  1. Set up the DVR/NVR system to record and store the footage.
  2. Configure remote access to monitor the camera feed from a computer or mobile device.

The Power of a Well-Installed CCTV Camera System

Congratulations! You’ve successfully installed a CCTV camera and taken a significant step toward improving your security. By following this comprehensive guide, you have learned the necessary steps, from planning and preparation to the actual installation process. Remember to regularly maintain your CCTV camera system, perform software updates, and clean the cameras to ensure satisfactory performance. With your CCTV camera system in place, you can now enjoy the benefits of effective surveillance, providing you with peace of mind and the ability to protect your property and loved ones.


By following this step-by-step guide on how to install a CCTV camera, you have taken a significant step toward improving your security. Determinate, if you’re unsure about any aspect of the installation process, it’s always wise to consult a professional CCTV installation service to ensure a seamless setup.

By implementing a powerful CCTV camera system, you are investing in the safety and security of your property. Stay alert, stay protected, and enjoy the peace of mind that comes with effective surveillance.
