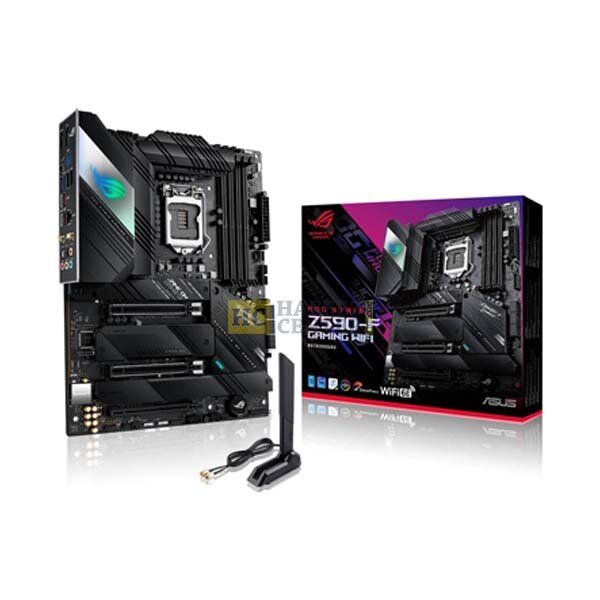

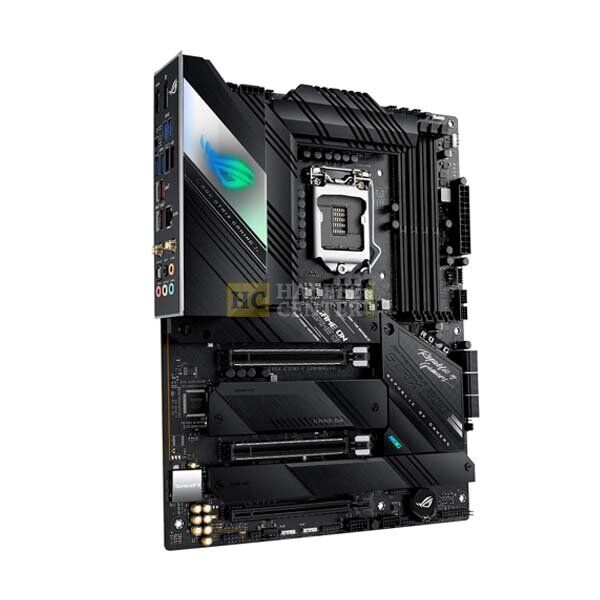

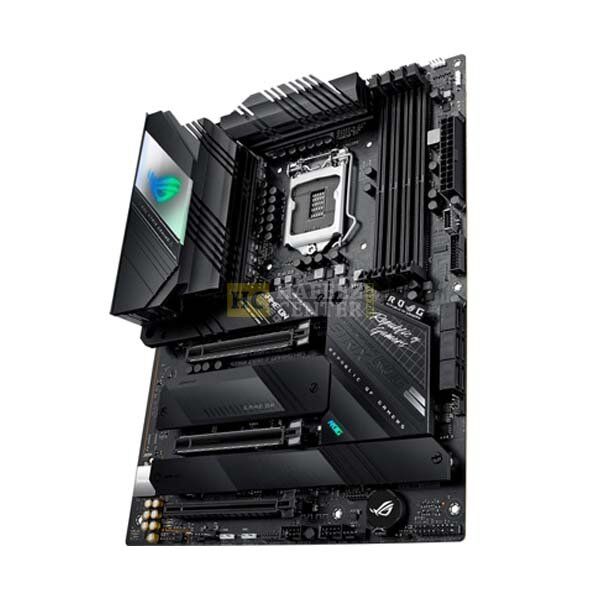

Asus ROG Strix Z590-F Gaming WiFi Intel Z590 LGA 1200 ATX Motherboard

Asus ROG Strix Z590-F Description:

Intel^® Asus ROG Strix Z590-F LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel^® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C^®, SATA and Aura Sync RGB lighting

• Ready for 11th Gen Intel^® Core™ processors & 10th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
• Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate for the PCIe 4.0 M.2 slot
• High-performance Networking: On-board Intel^® WiFi 6E AX210 (802.11ax) and Intel^® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C^®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, and FlexKey
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Specifications:

• CPU: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Refer to www.asus.com for CPU support list.
• Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

• Model: Z590
• Memory: Memory Channels:4DDR4 (Dual channel)
• Max Memory Size: 128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC) /4133(OC) /4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture: Supports Intel^® Extreme Memory Profile (XMP)

OptiMem II

• * 10th Gen Intel^® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel^® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics in Asus ROG Strix Z590-F

• 1 x DP1.4
• Graphics specifications may vary between CPU types.
• For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Please refer to www.intel.com for any update. “
• For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
• VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots:

• 2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)
• Intel® 11^th &10^th Gen Processors
• 2 x PCIe 4.0/3.0 x16 slot(s)*
• Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s)
• Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s)

Intel® Z590 Chipset

• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• Support PCIe bandwidth bifurcation for RAID on CPU function.

USB:

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Asus ROG Strix Z590-F with Front USB

• Total 7 ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

• SupremeFX Shielding Technology
• ALC4080 + Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium Japanese audio capacitors
• Audio cover

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Accessories with Asus ROG Strix Z590-F

• Cables
• 4 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Fan holder

Operating System:

Windows 10 64bit

Form Factor:

30.5cm x 24.4cm
